Go Direct® Sound Sensor

Go Direct® Sound Sensor

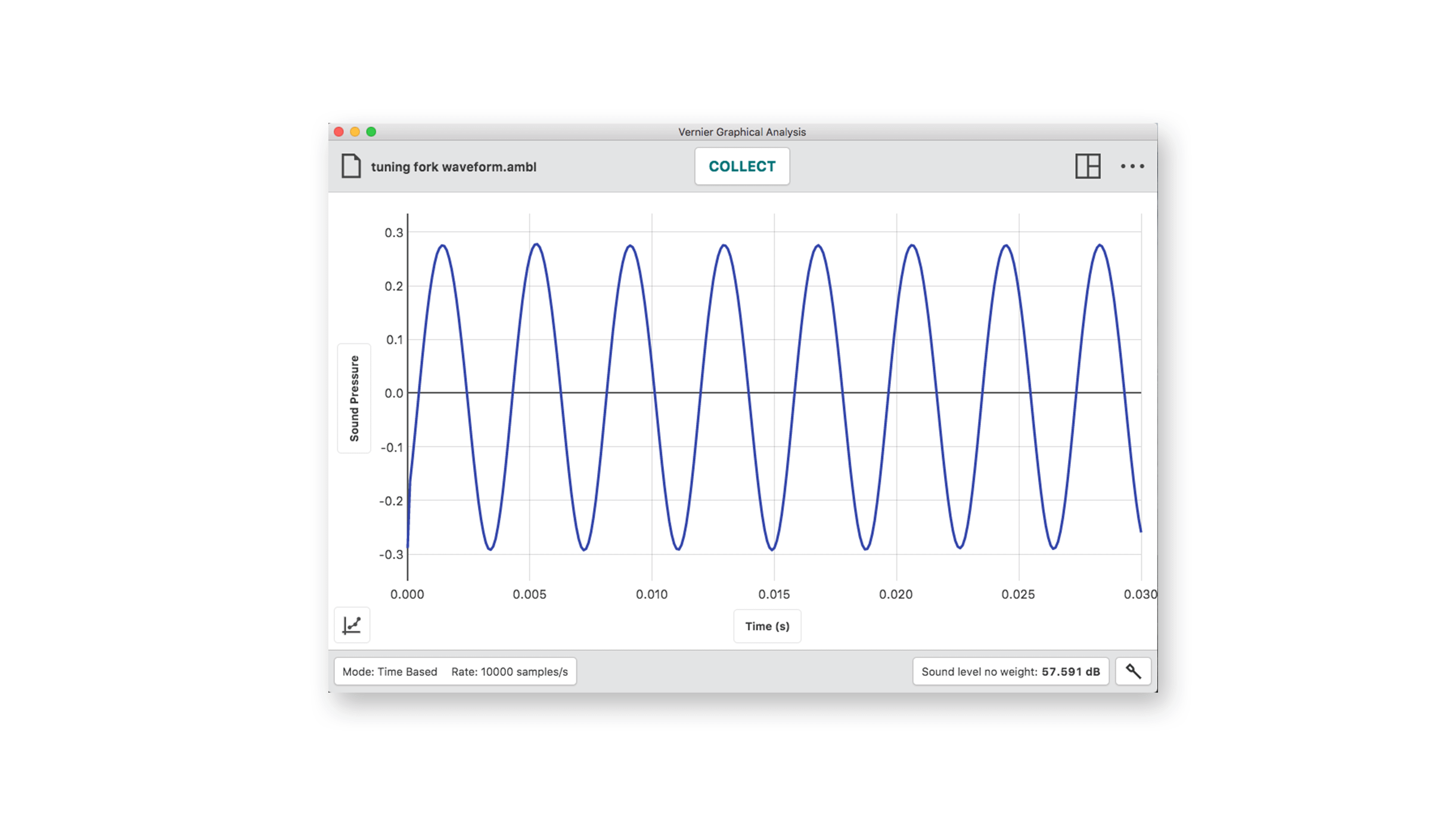

Tuning fork waveform

Tuning fork waveform

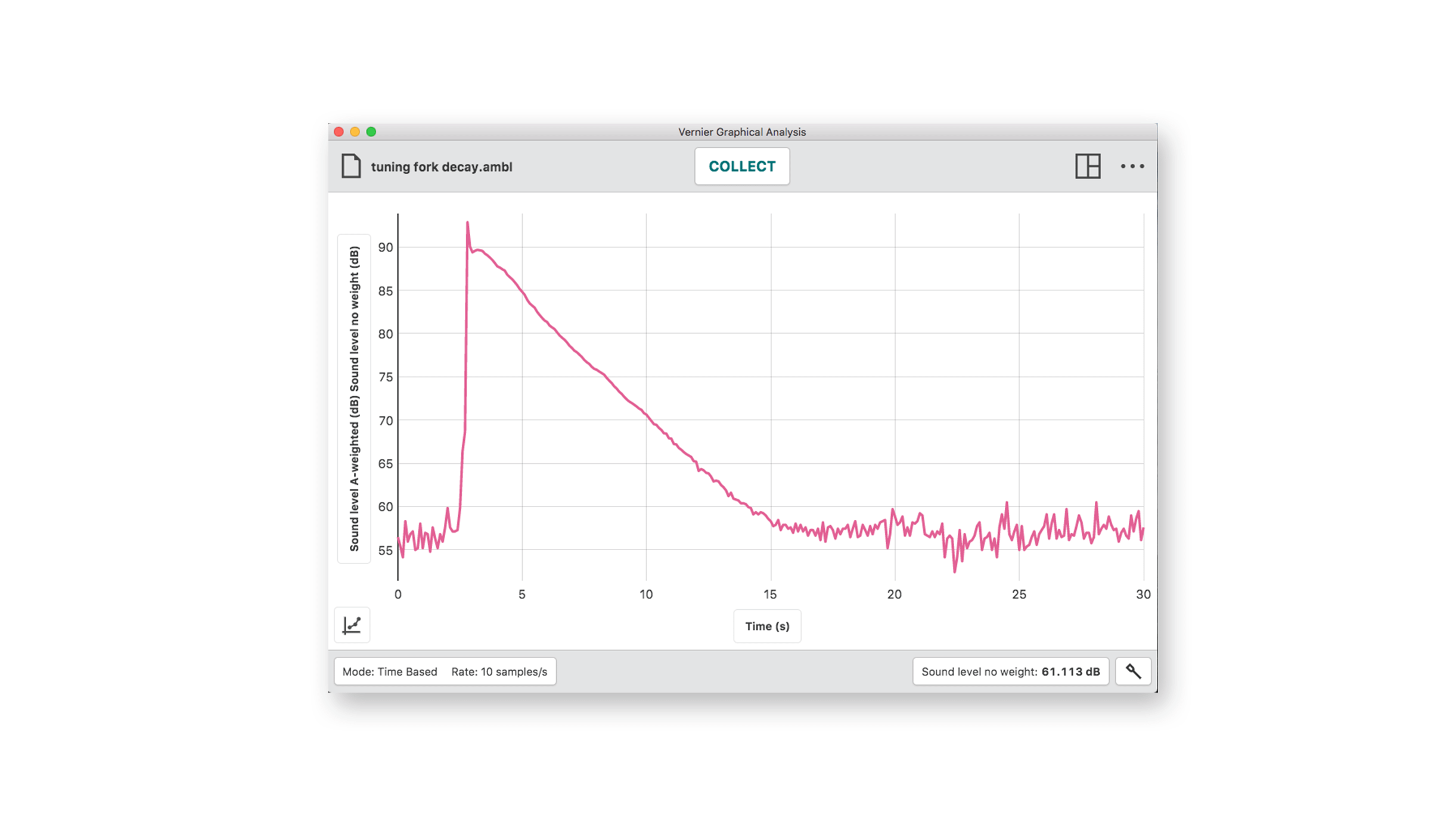

Tuning fork loudness decay with time

Tuning fork loudness decay with time

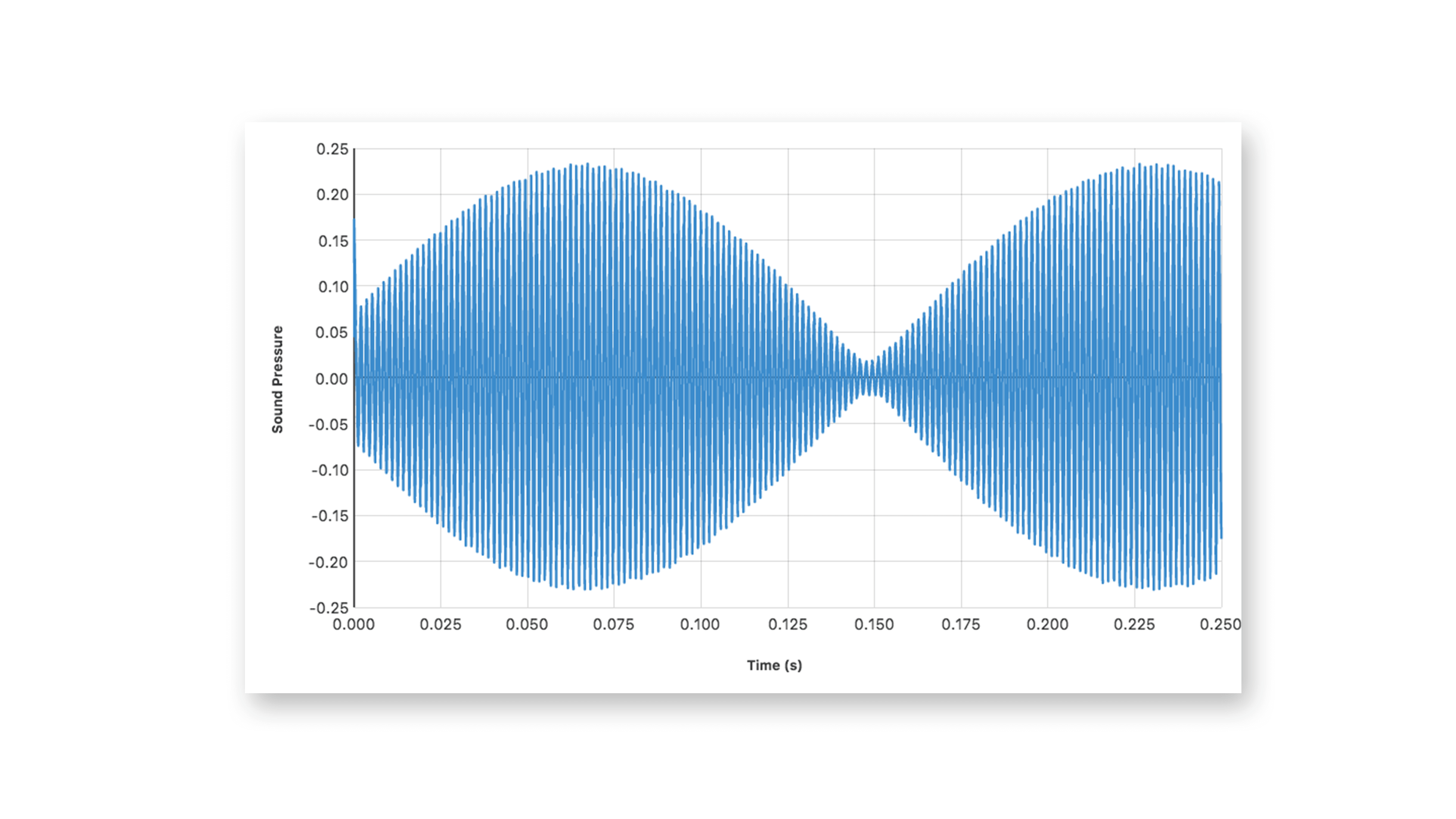

Investigating beat frequencies

Investigating beat frequencies

Go Direct® Sound Sensor

$98.00

The Go Direct Sound Sensor is used to easily capture and evaluate waveforms. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-SND Categories , ,

Collect sound data wirelessly with the snap of your fingers. With sound-triggered data collection, Go Direct® Sound provides students with an easy way to capture and evaluate waveforms. Measure wave amplitude and sound intensity level at the same time to investigate the decibel scale, or take the sensor outside the classroom to discover sounds in their natural environment.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis® app, as well as LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using our Vernier Graphical Analysis® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Specifications

  • Response: A- or C-weighted
  • Range: 55–110 dB
  • Accuracy: ±3 dB
  • Resolution: 0.1 dB
  • Sound Level Frequency Range: 30–10,000 Hz
  • Microphone Level Frequency Range: 100 Hz to 15 kHz
  • Typical Max Frequency: 10,000 Hz
  • Connections
    • Wireless: Bluetooth
    • Wired: USB

Experiments

Middle School (1 experiments)
ExperimentLab Book
Name That TuneForensics with Vernier
High School (9 experiments)
ExperimentLab Book
Name That TuneForensics with Vernier
Wave Speed on a StringPhysics Explorations and Projects
Speed of SoundPhysics Explorations and Projects
Sound and LoudnessPhysics Explorations and Projects
Standing Waves in a Column of AirAdvanced Physics with Vernier — Beyond Mechanics
Sound Waves and BeatsPhysics with Vernier
Speed of SoundPhysics with Vernier
Tones, Vowels and TelephonesPhysics with Vernier
Mathematics of MusicPhysics with Vernier
College (8 experiments)
ExperimentLab Book
Wave Speed on a StringPhysics Explorations and Projects
Speed of SoundPhysics Explorations and Projects
Sound and LoudnessPhysics Explorations and Projects
Standing Waves in a Column of AirAdvanced Physics with Vernier — Beyond Mechanics
Sound Waves and BeatsPhysics with Vernier
Speed of SoundPhysics with Vernier
Tones, Vowels and TelephonesPhysics with Vernier
Mathematics of MusicPhysics with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis
No interface requiredFull support 1
LabQuest 3Full support 2
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis
No interface requiredFull support
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportPartial support 1
LabQuest 3Full support 2 3Full support 2 3
LabQuest 2 (discontinued)Full support 2 3 4Full support 2 3 4

Compatibility Notes

  1. Triggering is not support with this software.
  2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  3. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  4. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportIncompatible
LabQuest 3Full support 1 2Full support 1
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 3

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support 1

Compatibility Notes

  1. A wireless Bluetooth® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.
LabVIEW
Software
InterfaceNI LabVIEW
No interface requiredFull support 1

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.

What's Included

  • Go Direct® Sound Sensor
  • Micro USB Cable

Accessories

AccessoryOrder CodePriceQuantity
Go Direct® Charge StationGDX-CRG$89.00
Replacement PartOrder CodePriceQuantity
Micro USB CableCB-USB-MICRO$5.00
Go Direct® 300 mAh Replacement BatteryGDX-BAT-300$10.00

Support

Resources

Warranty

5-year limited warranty (1 year on battery)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
