Blood Pressure Sensor

Blood Pressure Sensor

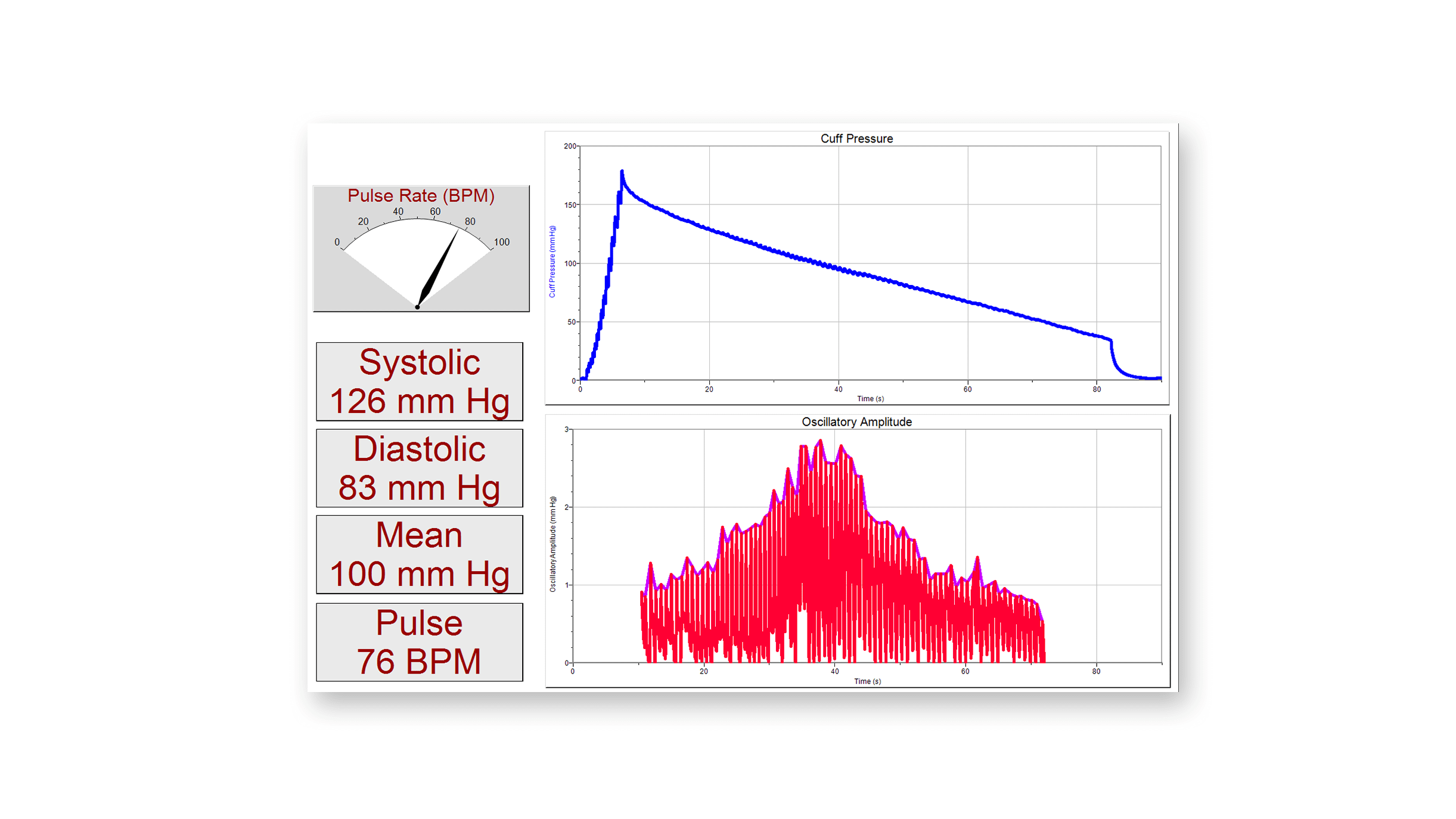

Blood pressure measurement with animated, real-time displays

Blood pressure measurement with animated, real-time displays

Blood Pressure Sensor

$120.00

The Blood Pressure Sensor is a non-invasive sensor designed to measure human blood pressure. It measures systolic, diastolic and mean arterial pressure utilizing the oscillometric method. Pulse rate is also reported.

ORDER CODE: BPS-BTA Categories ,
Education Levels

Specifications

  • Pressure range: 0 mmHg to 258 mmHg
  • Maximum pressure without permanent damage: 1550 mmHg
  • Typical accuracy: ±1 mmHg
  • Temperature compensated: -20°C to 85°C
  • Sensing element: SSCMRRN005PGAA5
  • Combined linearity and hysteresis: typical ±0.25%
  • Response time: 1 millisecond

Experiments

High School (7 experiments)
ExperimentLab Book
Blood Pressure as a Vital SignAdvanced Biology with Vernier
Blood PressureEngineering Projects with NI LabVIEW and Vernier
Heart Rate and Blood Pressure as Vital SignsHuman Physiology with Vernier
Heart Rate, Blood Pressure, and ExerciseHuman Physiology with Vernier
Blood Pressure as a Vital SignHuman Physiology with Vernier
Blood Pressure and ExerciseHuman Physiology with Vernier
Diurnal Blood Pressure VariationHuman Physiology with Vernier
College (7 experiments)
ExperimentLab Book
Blood Pressure as a Vital SignAdvanced Biology with Vernier
Blood PressureEngineering Projects with NI LabVIEW and Vernier
Heart Rate and Blood Pressure as Vital SignsHuman Physiology with Vernier
Heart Rate, Blood Pressure, and ExerciseHuman Physiology with Vernier
Blood Pressure as a Vital SignHuman Physiology with Vernier
Blood Pressure and ExerciseHuman Physiology with Vernier
Diurnal Blood Pressure VariationHuman Physiology with Vernier

Requirements

Choose a platform below to see its compatibility requirements. This sensor requires an interface (sold separately).

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical AnalysisLogger ProLogger Lite
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportIncompatible
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest Stream (discontinued)Full support 1Full supportFull support 1
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support
LabPro (discontinued)IncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest Stream (discontinued)Full support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportIncompatible
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportIncompatible
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support 1
Vernier myDAQ AdapterFull support 1 2
Go!LinkFull support 1
LabQuest MiniFull support
LabQuest Stream (discontinued)Full support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.

What's Included

  • Vernier Blood Pressure Sensor
  • Standard adult size adjustable cuff (27 cm to 39 cm)
  • Bulb pump (with release valve)

Accessories

AccessoryOrder CodePriceQuantity
Blood Pressure Cuffs - SmallCUFF-SM$35.00
Blood Pressure Cuffs - LargeCUFF-LG$40.00
Replacement PartOrder CodePriceQuantity
Blood Pressure Cuffs - SmallCUFF-SM$35.00
Blood Pressure Cuffs - StandardCUFF-STD$32.00
Blood Pressure Cuffs - LargeCUFF-LG$40.00

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
