Platinum-Cell Conductivity Probe

Platinum-Cell Conductivity Probe

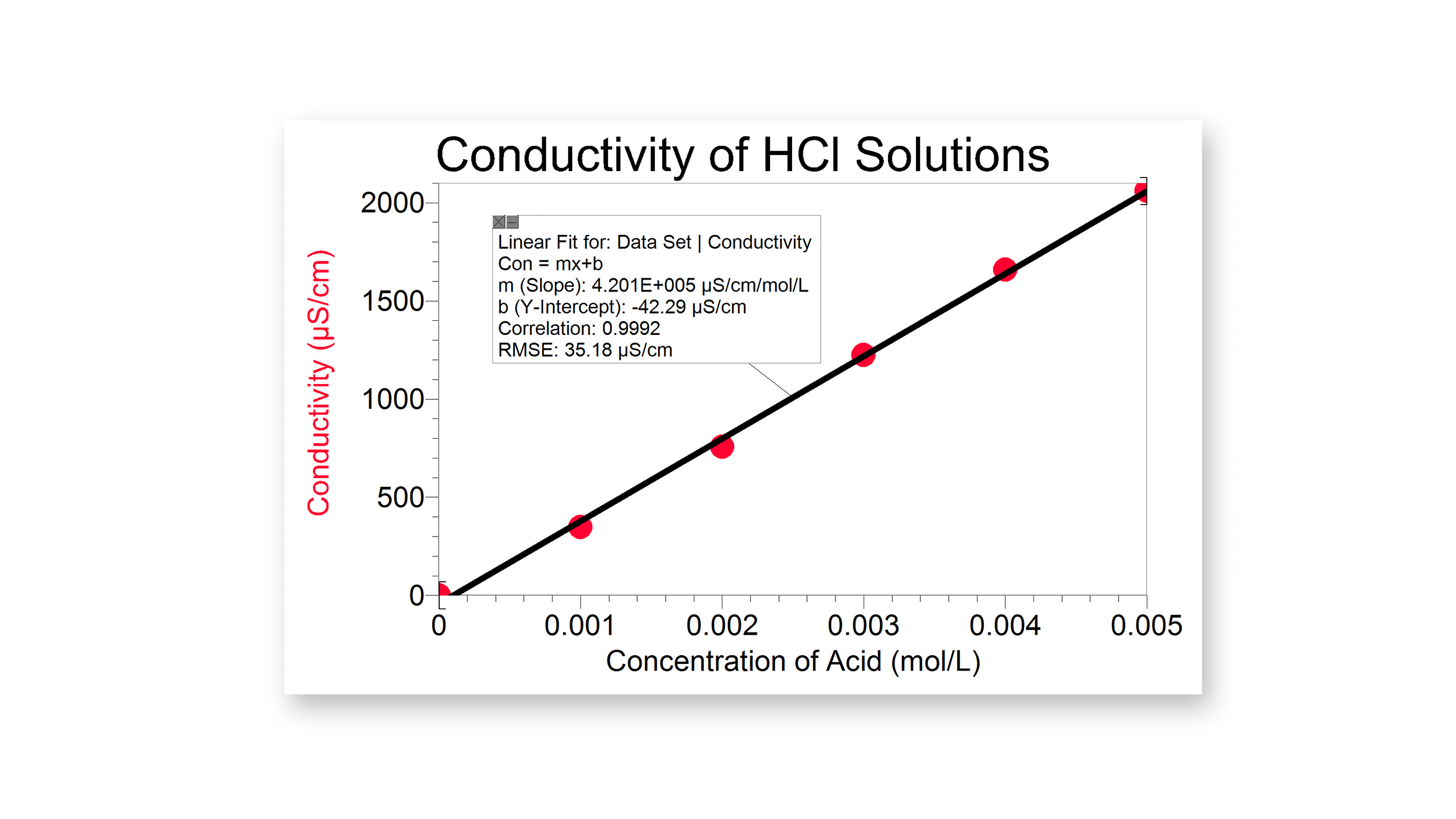

Effect of concentration on conductivity

Effect of concentration on conductivity

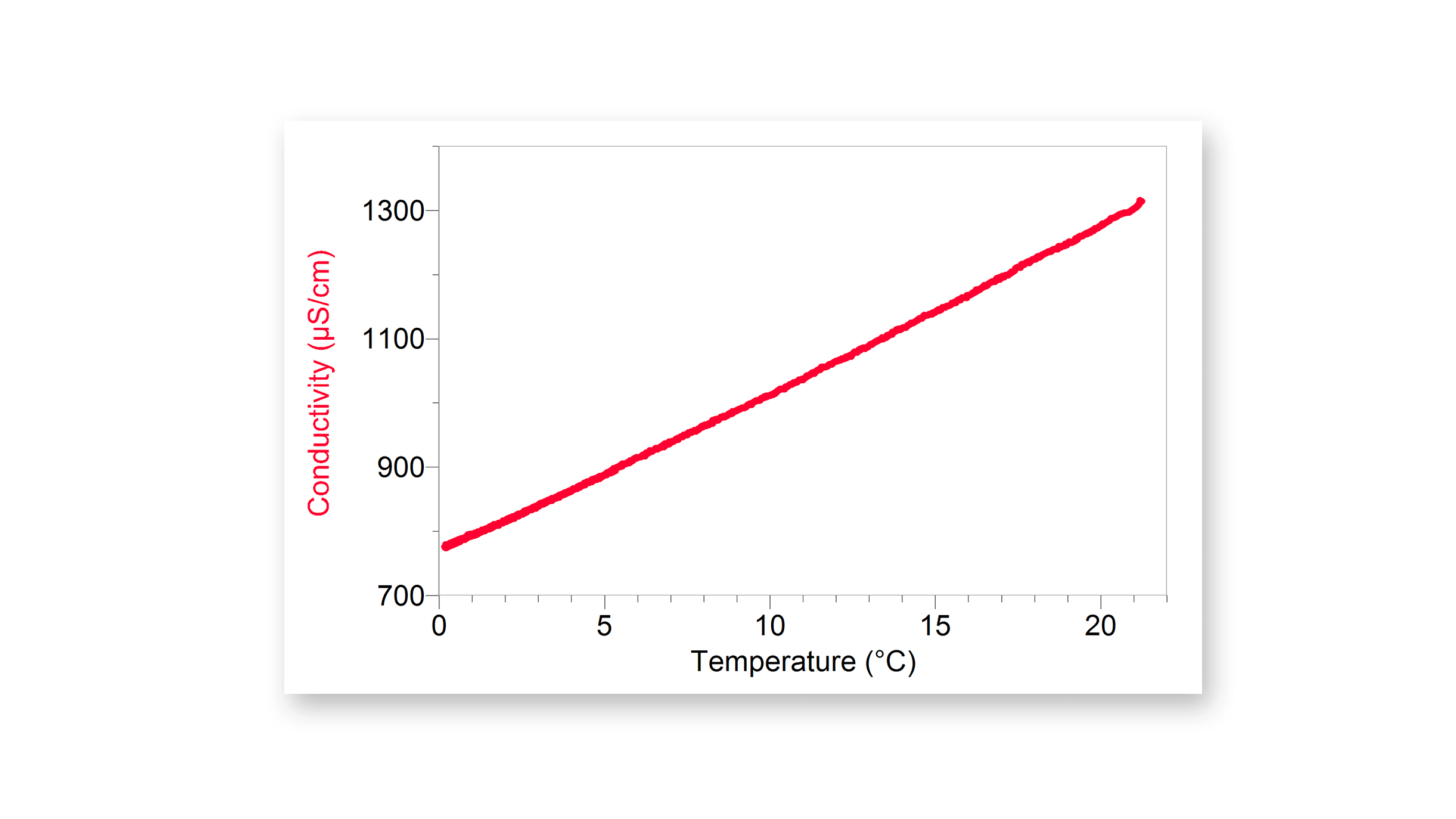

Effect of temperature on the conductivity of NaCl

Effect of temperature on the conductivity of NaCl

Platinum-Cell Conductivity Probe

$170.00

The 2-cell platinum sensing element and epoxy body of this electrode ensures greater chemical compatibility and accuracy when measuring the conductivity of stronger acids and bases and non-aqueous solutions.

ORDER CODE: CONPT-BTA Categories ,
Education Levels

Specifications

  • Range: 0–2000 uS/cm
  • Body Description: epoxy body, 2-cell platinum element
  • Accuracy using factory calibration: ±40 µS/cm
  • Accuracy using custom calibration: ±10 µS/cm
  • Response Time: 95% of full-scale in 5 seconds
  • Temperature Compensation: 2 settings–none or 2% from 5 to 35°C (aqueous solutions)
  • Temperature Range: 0 to 80 °C
  • Cell Constant: 1.0 cm-1
  • Dimensions: 12 mm OD x 120 mm shaft length

Experiments

High School (1 experiments)
ExperimentLab Book
The Base Hydrolysis of Ethyl AcetateAdvanced Chemistry with Vernier
College (1 experiments)
ExperimentLab Book
The Base Hydrolysis of Ethyl AcetateAdvanced Chemistry with Vernier

Requirements

Choose a platform below to see its compatibility requirements. This sensor requires an interface (sold separately).

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical AnalysisLogger ProLogger Lite
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportIncompatible
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest Stream (discontinued)Full support 1Full supportFull support 1
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support
LabPro (discontinued)IncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest Stream (discontinued)Full support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportPartial support 1
LabQuest 3Full support 2Full support 2
LabQuest 2 (discontinued)Full support 2Full support 2

Compatibility Notes

  1. Data can be collected using the sensor’s default calibration only.
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support
Vernier myDAQ AdapterFull support 1
Go!LinkFull support
LabQuest MiniFull support
LabQuest Stream (discontinued)Full support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2 (discontinued)Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Platinum-Cell Conductivity Probe

Accessories

AccessoryOrder CodePriceQuantity
Conductivity Standard Solution - Low ConcentrationCON-LST$25.00
Conductivity Standard Solution - Middle ConcentrationCON-MST$25.00
Electrode SupportESUP$10.00
Conductivity Standard Solution - High ConcentrationCON-HST$25.00
MicrostirrerMSTIR$9.00

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
