3-Axis Accelerometer

3-Axis Accelerometer

3-Axis Accelerometer

$105.00

The 3-Axis Accelerometer has three separate internal accelerometers mounted orthogonally, allowing you to analyze separate components of complex accelerations.

ORDER CODE: 3D-BTA Categories ,

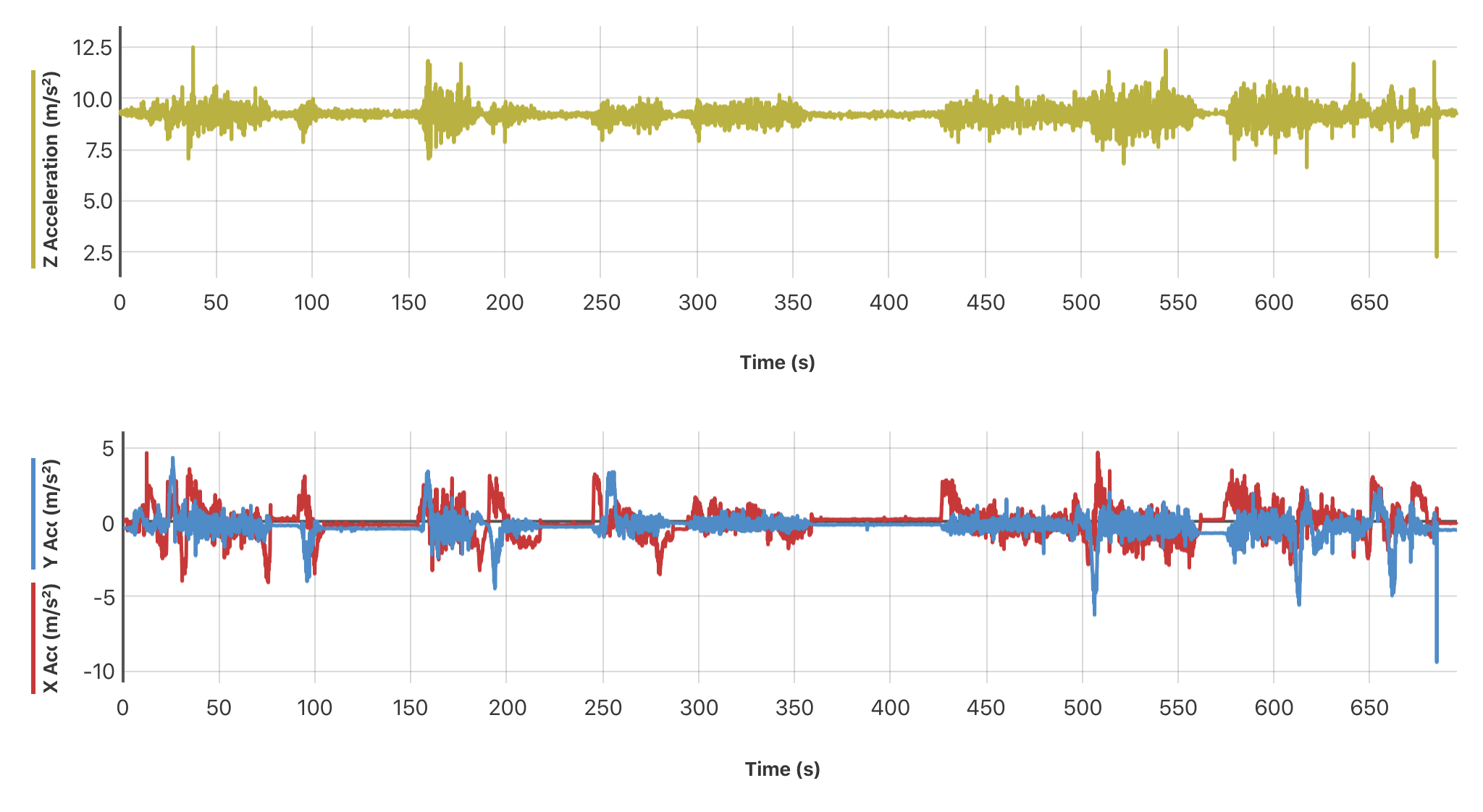

The 3-Axis Accelerometer consists of three –5 to +5 g accelerometers mounted in one small block. Using the appropriate data collection hardware and software, you can graph any of these components, or calculate the magnitude of the net acceleration. The 3-Axis Accelerometer can be used for a wide variety of experiments and demonstrations, both inside the lab and outside.

Specifications

  • Power: 30 mA @ 5 VDC
  • Range: ±49 m/s2 (±5 g)
  • Accuracy: ±0.5 m/s2 (±0.05 g)
  • Frequency Response: 0–100 Hz
  • Typical Resolution: 0.037 m/s2

Requirements

Choose a platform below to see its compatibility requirements. This sensor requires an interface (sold separately).

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical AnalysisLogger ProLogger Lite
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportIncompatible
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest Stream (discontinued)Full support 1Full supportFull support 1
Go!LinkPartial support 2Partial support 2Partial support 2
LabQuest (discontinued)Full supportFull supportFull support
LabPro (discontinued)IncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
  2. This interface can only collect acceleration data from one axis.
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest Stream (discontinued)Full support 1
Go!LinkPartial support 2
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
  2. This interface can only collect acceleration data from one axis.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldPartial support 1

Compatibility Notes

  1. This interface can only collect acceleration data from two axes.
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support
Vernier myDAQ AdapterPartial support 1 2
Go!LinkPartial support 3
LabQuest MiniFull support
LabQuest Stream (discontinued)Full support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support

Compatibility Notes

  1. This interface can only collect acceleration data from two axes.
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  3. This interface can only collect acceleration data from one axis.
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkPartial support 1 2IncompatiblePartial support 1 3Partial support 1Partial support 1 3
CBL 2 (discontinued)Full support 4Full support 4 5IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 4Full support 4 5IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier 3-Axis Accelerometer

Accessories

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
