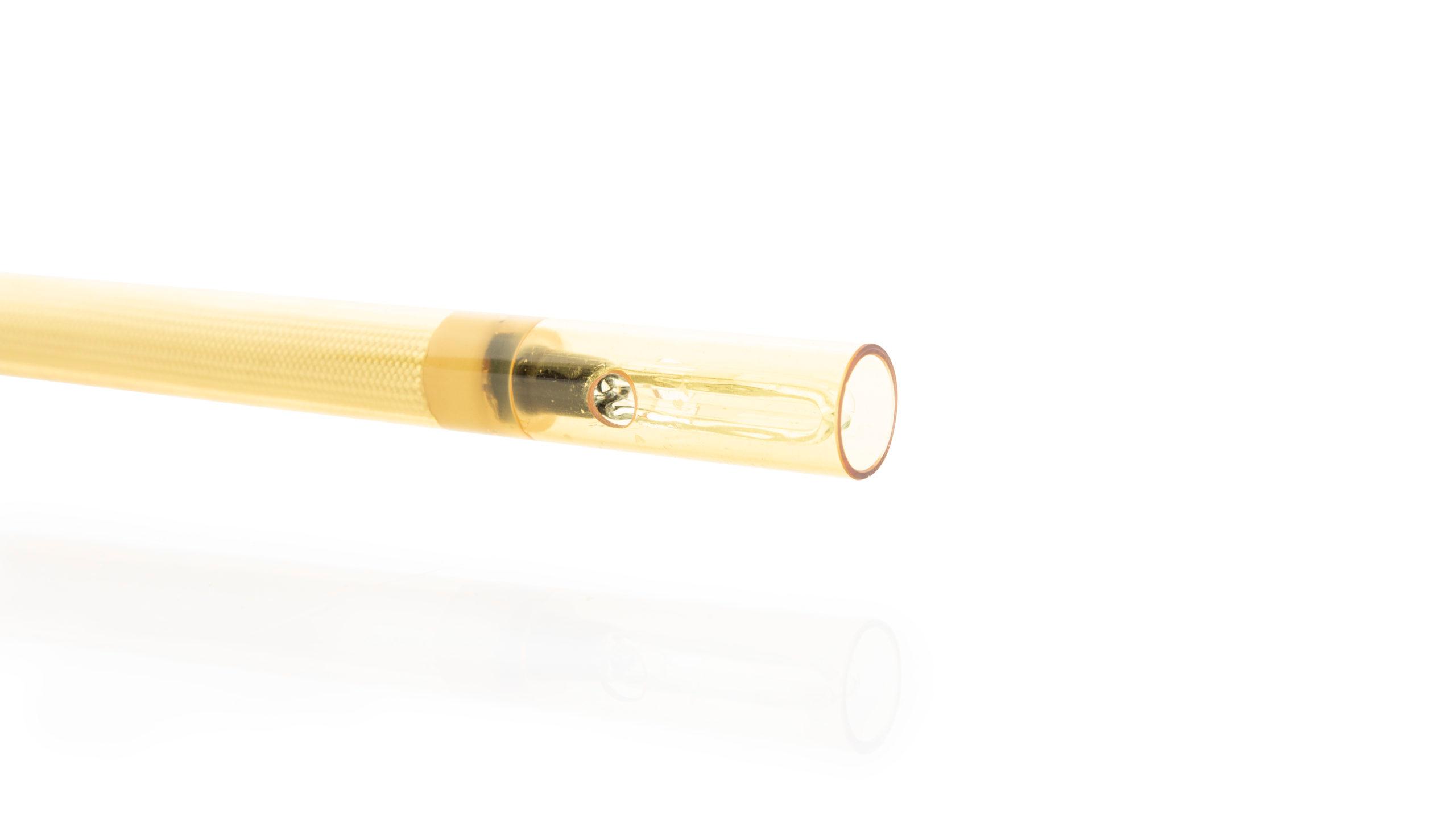

Go Direct® Platinum-Cell Conductivity Probe

Go Direct® Platinum-Cell Conductivity Probe

Go Direct® Platinum-Cell Conductivity Probe

$189.00

Perfect for AP Chemistry and college general chemistry, Go Direct Platinum-Cell Conductivity provides an accurate and easy measurement of a solution’s conductivity or its total ion concentration. The platinum-cell sensing element provides high accuracy and chemical compatibility when measuring non-aqueous solutions, strong acids, and strong bases. This probe connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-CONPT Categories ,

Go Direct Platinum-Cell Conductivity has a range of 0 to 20,000 μS/cm to provide optimal precision in any given range. The platinum-cell electrode provides increased accuracy by reducing polarization effects common in graphite conductivity probes.  This sensing element, along with its epoxy body, also provide greater chemical compatibility during experiments, such as the base hydrolysis of ethyl acetate under various conditions. Conductivity measurements can be taken in non-aqueous solutions, strong acids, and strong bases without damage to the sensor body or sensing element.

The durability of this probe provides the opportunity for field investigations. Conductivity is one of the most common environmental tests of aquatic samples. This test quickly determines the total concentration of ions in a sample. (Note: test does not tell you specific ions that are present)

This probe features a built-in temperature sensor to simultaneously read conductivity and temperature. Automatic temperature compensation allows students to calibrate the probe in the lab and then make measurements outdoors without temperature changes affecting data. This temperature compensation can be turned off to perform conductivity studies as a function of temperature.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis® app, as well as LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our Vernier Graphical Analysis® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Specifications

  • Range: 0 to 20,000 μS/cm (0 to 10,000 mg/L TDS)
  • Accuracy: ±10 µS/cm (valid for 1 to 4,000 µS/cm with custom one-point calibration at 1413 µS/cm)
  • Temperature compensation: Automatic from 5 to 35°C, can be turned off
  • Temperature range (can be placed in): 0 to 80°C
  • Cell constant: 1.0 cm-1
  • Resolution: 0.01 µS/cm
  • Description: Epoxy body, 2-cell platinum element electrode
  • Dimensions: 12 mm OD and 120 mm length
  • Connections:
    • Wireless: Bluetooth
    • Wired: USB

Experiments

High School (1 experiments)
College (1 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis
No interface requiredFull support 1
LabQuest 3Full support 2
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis
No interface requiredFull support
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportIncompatible
LabQuest 3Full supportFull support
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportIncompatible
LabQuest 3Full supportFull support
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support
LabVIEW
Software
InterfaceNI LabVIEW
No interface requiredFull support 1

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.

What's Included

  • Go Direct Platinum-Cell Conductivity Probe
  • Micro USB Cable

Accessories

AccessoryOrder CodePriceQuantity
Conductivity Standard Solution - Low ConcentrationCON-LST$25.00
Conductivity Standard Solution - Middle ConcentrationCON-MST$25.00
Conductivity Standard Solution - High ConcentrationCON-HST$25.00
Replacement PartOrder CodePriceQuantity
Micro USB to USB-C CableCB-USB-C-MICRO$9.00
Micro USB CableCB-USB-MICRO$5.00
Go Direct® 300 mAh Replacement BatteryGDX-BAT-300$10.00
