Optics Expansion Kit

Optics Expansion Kit

Optics Expansion Kit

$199.00

Add the Vernier Optics Expansion Kit to your Dynamics Cart and Track System to conduct optics experiments, such as image formation with lenses and light intensity vs. distance. You can even use the kit to build a basic telescope.

ORDER CODE: OEK Categories ,

Add the Vernier Optics Expansion Kit to your Dynamics Cart and Track System to conduct optics experiments, such as image formation with lenses and light intensity vs. distance. You can even use the kit to build a basic telescope.

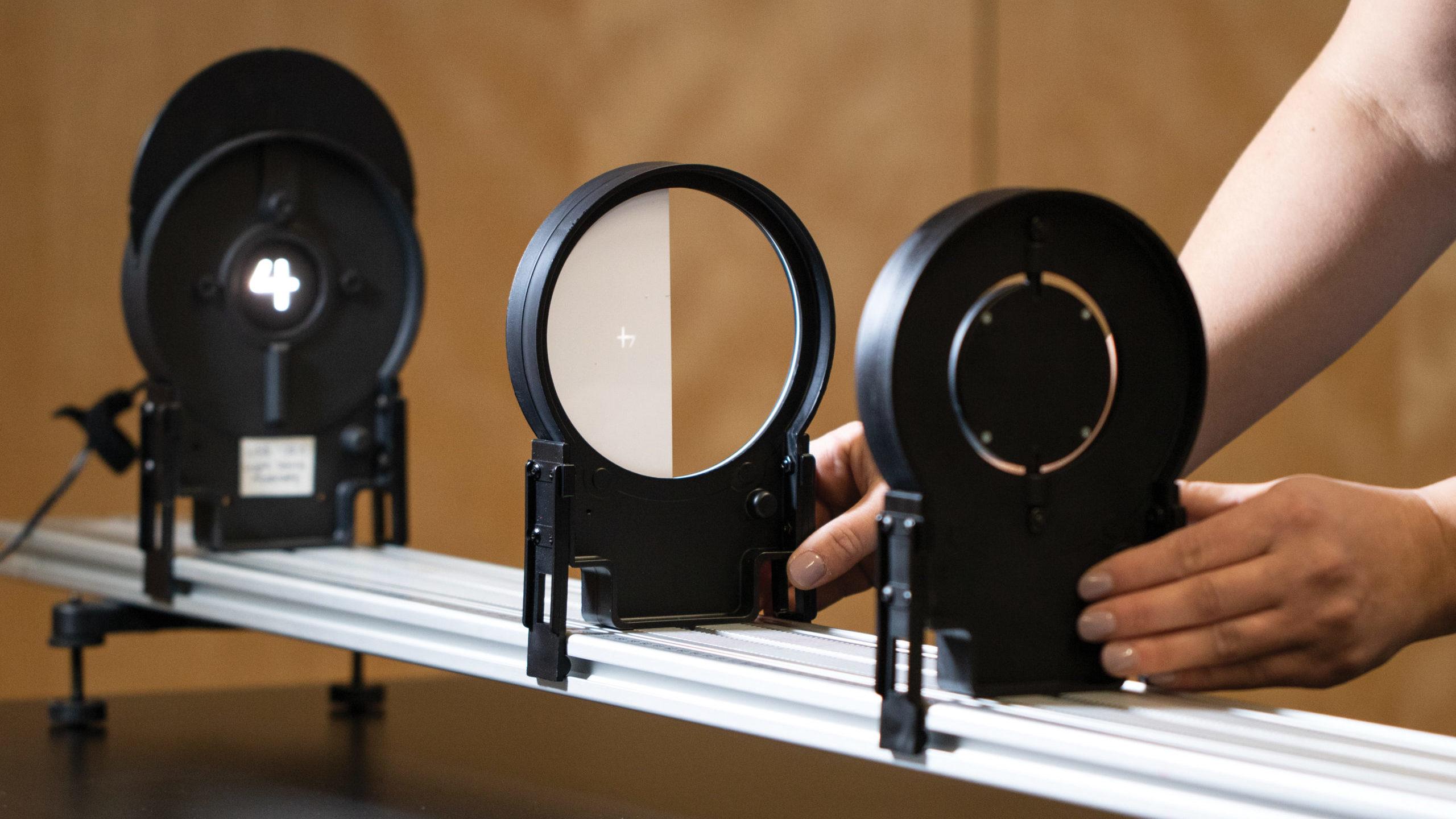

The parts of the Optics Expansion Kit snap on to the track, so that the parts can be left in place while the track is moved. The three lenses are permanently mounted in three plastic supports. The light source is LED-based, so that it uses less energy and is cool to the touch. A rotating disc on the light source gives you the option of a radiant object, a point source, an “L” with 2 by 1 cm dimension, and parallel lines for resolution experiments. The power supply is the same as the LabQuest power supply. An additional aperture plate is included for experiments based on lens diameter and shape.

For additive and subtractive color mixing experiments, check out the Color Mixer Kit.

The Optics Expansion Kit requires a Vernier Track to serve as an optics bench. The Vernier Track is included with a Vernier Dynamics Cart and Track System.

Experiments

High School (7 experiments)
College (7 experiments)

What's Included

  • Combination LED point and luminous light source with power supply
  • Three lenses integrated with holders (100, 200, and —150 mm focal length)
  • Screen and holder
  • Light Sensor holder
  • Aperture screen and holder
  • Power supply

Accessories

AccessoryOrder CodePriceQuantity
Mirror Set for Optics Expansion KitM-OEK$69.00
Polarizer/Analyzer for Optics Expansion KitPAK-OEK$89.00
Color Mixer KitCM-OEK$189.00
Replacement PartOrder CodePriceQuantity
Sensor Bracket for Go Direct®GDX-MOUNT$6.00
Aperture AssemblyAPT-OEK$17.00
LabQuest® Power SupplyLQ3-PS$11.00
Replacement Light Source for Optics Expansion KitLSB-OEK$77.00
Replacement Light Sensor Holder for Optics Expansion KitLSHB-OEK$17.00
Replacement 20 cm Converging Lens for Optics Expansion KitL20B-OEK$17.00
Replacement Screen for Optics Expansion KitSCRN-OEK$17.00
Replacement 15 cm Diverging Lens for Optics Expansion KitL15B-OEK$17.00
Replacement 10 cm Converging Lens for Optics Expansion KitL10B-OEK$17.00
